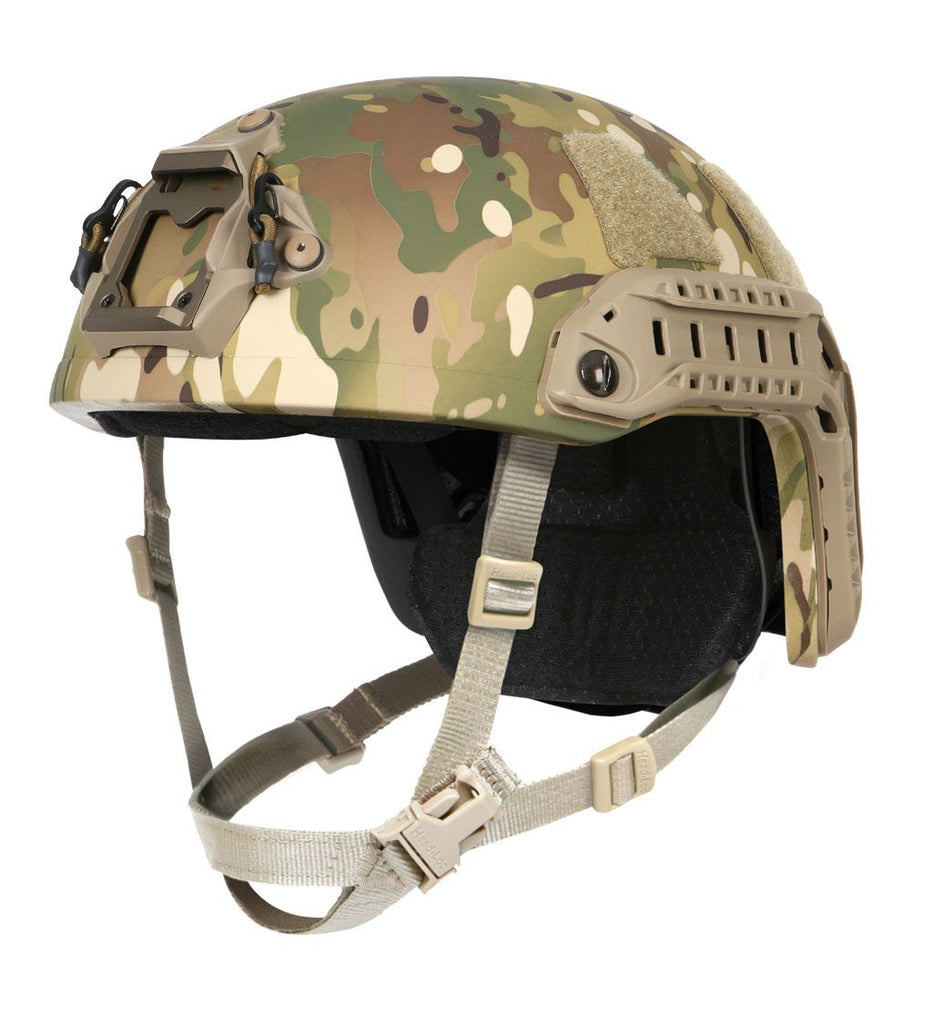

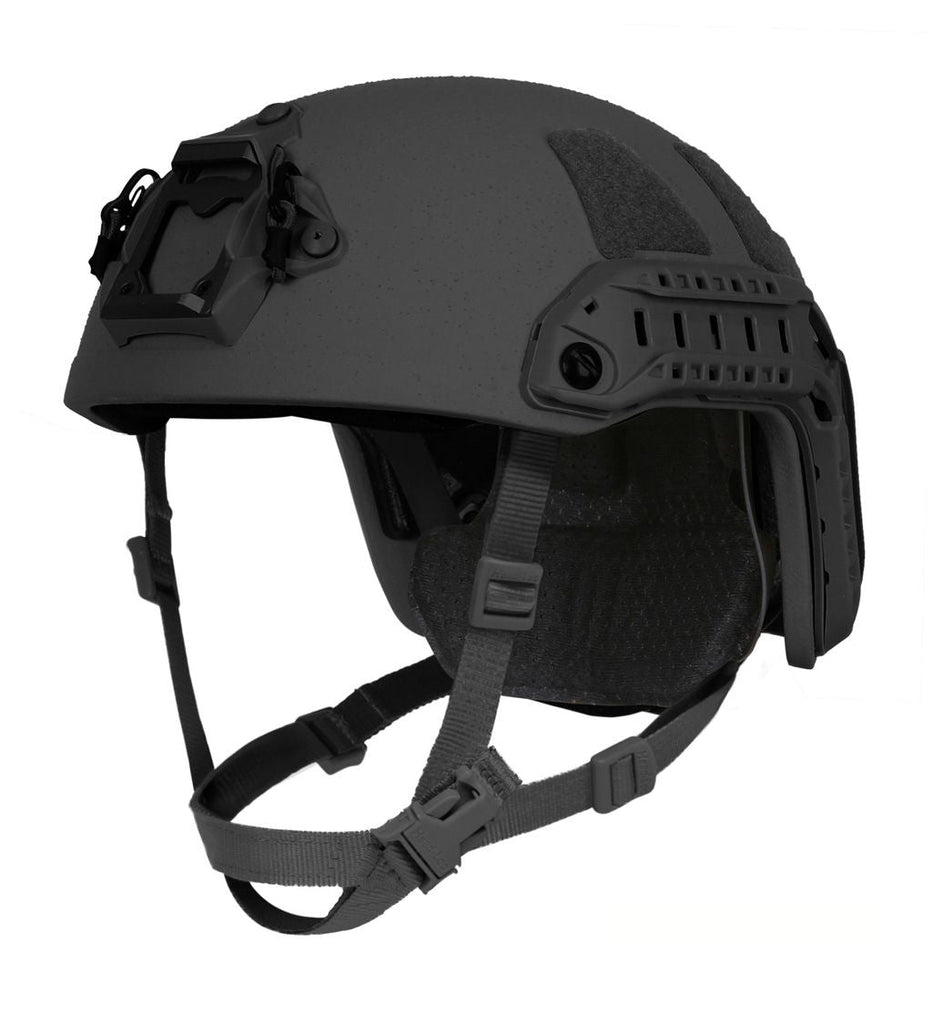

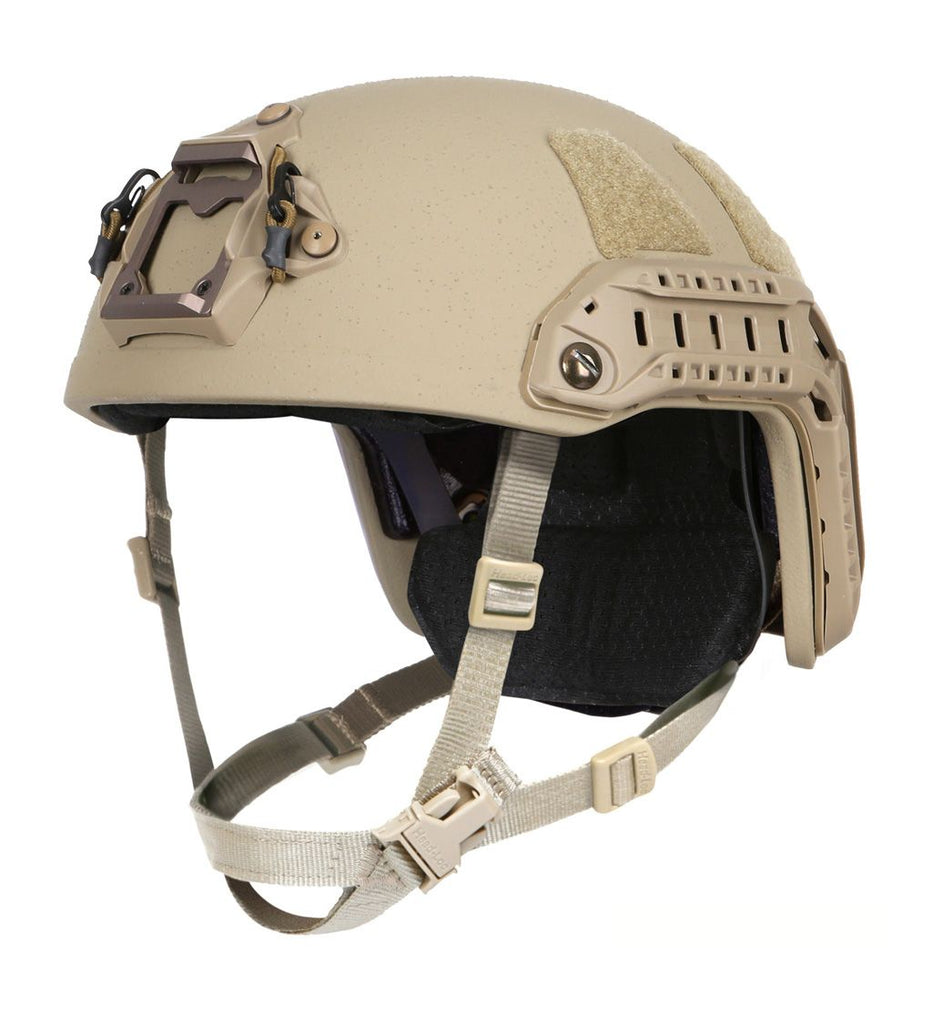

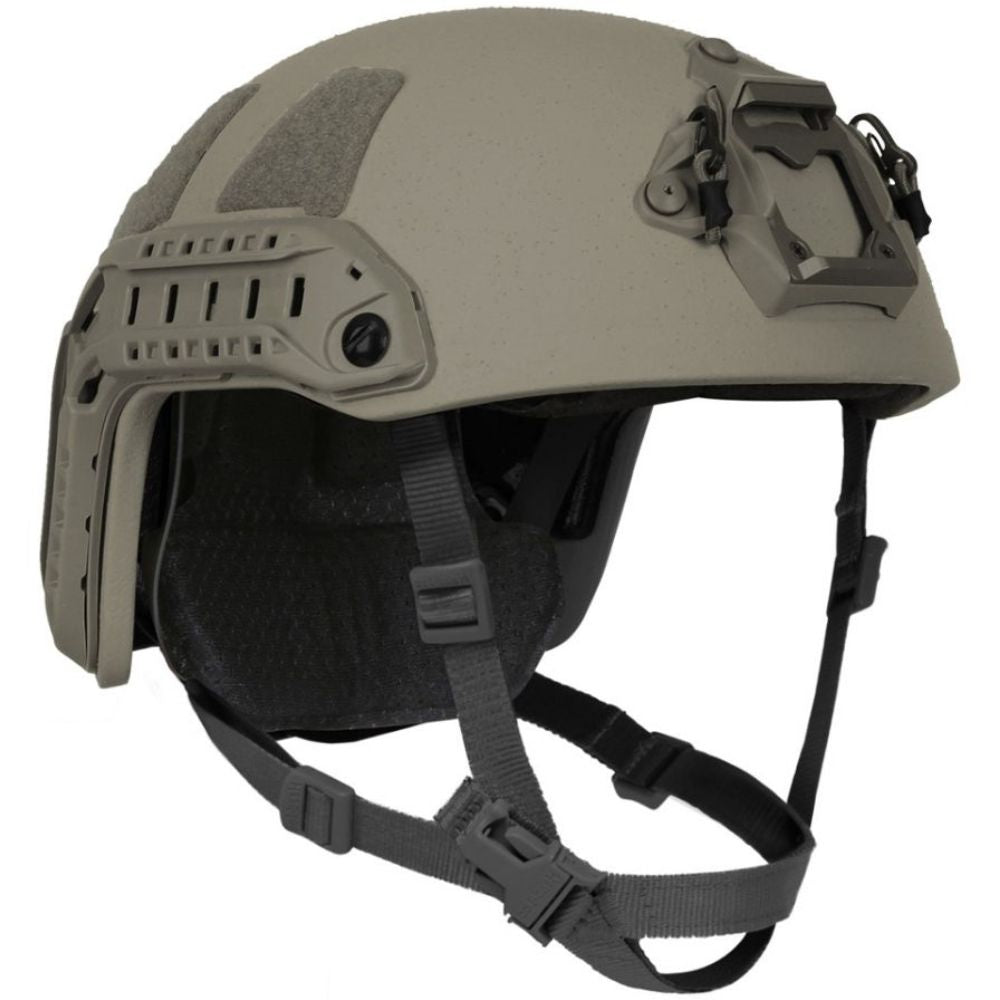

Ops-Core FAST XP Tactical High Cut Helmet

• Lightweight design capable of resisting 9mm and frag threats
• High-cut, ballistic shell made of a hybrid composite of the most advanced carbon, unidirectional polyethylene, and woven aramid
• High-cut shell geometry extends critical coverage over the rear occipital lobe without load carrier interference and optimizes weight distribution for increased stability, integration, balance, and improved comfort
• Low Profile Skeleton Rail system offers a lightweight mounting system for the head-borne eco-system
• Molded liner features a proprietary recessed channel, accommodating over-the-head communications headsets with no interference or user discomfort and the ability to doff and don the helmet without removing the headset

Suspension & Retention Options:

• Vented Lux Liner with Low Profile OCC-Dial and Head-Loc Retention System

Testing Protocols & Design:

• Performance Specification:  In accordance with Gentex PS-1063 Specification, Modified and Abbreviated US Army ACH Helmet CO/PD 05-04:2007 Specification
• NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ @ 1,400 ft/s) Threat Fragmentation Protection: In accordance with PS-1063 and MIL-STD-662F
• 9mm Protection: In accordance with PS-1063, Resistance to Penetration (RTP) and Backface Defamation
• (BFD): 9mm FMJ, 24gr FMJ at 1,400 ft/s (426 m/s) at 0° obliquity with BFD < 1.0 inch (25.4 mm) (Right, Left, Crown, Front and Back)
• Blunt Impact Protection: <150 G’s at 10 ft/s per ACH CO/PD 05-04:2007
• Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg), Side-Side = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) per MICH Type II FQ/PD 06-35C: 2013
• Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot +160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007

Specifications:

Performance Specification: In accordance with Gentex PS-1063 Specification, Modified and Abbreviated US Army ACH Helmet CO/PD 05-04:2007 Specification

NIJ Standards: NIJ 0106.01 with NIJ 0108.01 Level IIIA (9mm FMJ @ 1,400 ft/s) Threat

Fragmentation Protection: In accordance with PS-1063 and MIL-STD-662F

Blunt Impact Protection: <150 G’s at 10 ft/s per ACH CO/PD 05-04:2007

Compression Testing: Top-Bottom = .020” (0.51 mm) Max @ 400 lbs. (181.44 kg), SideSide = .125” (3.18 mm) Max @ 300 lbs. (136.08 kg) per MICH Type II FQ/PD 06-35C: 2013

Environmental Resistance: Temperature -Storage and Operating at Ambient, Cold -60° F (-51° C), and Hot +160° F (71° C), Temperature Shock, Flame Resistance, Altitude, Vibration, Seawater, Field Agent Resistance, Weatherometer per ACH CO/PD 05-04:2007

Shell Construction: Two-Stage Non-Slit

Shell Thickness: 0.290” (7.37mm)

Shell Geometry (Curvature): FAST

Cut Style (Side Protection): High Cut

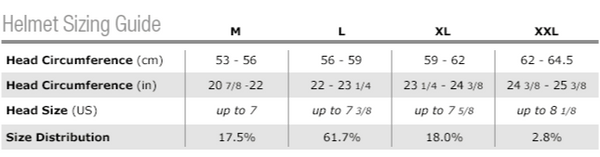

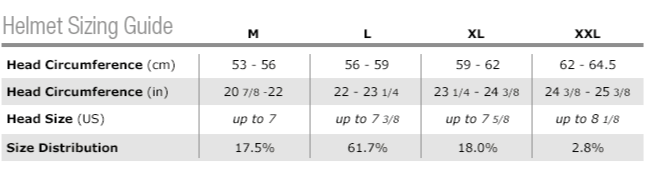

Available Sizes: Medium (M), Large (L), X-Large (XL), XX-Large (XXL)

What's Included in the Box?

1.  Ballistic Helmet and Accessories
2.  Free helmet bag
3.  Spare padding set
4.  Operator's Manual
5.  Inspection Card
