Fulfilled by our friends at ACOPOWER
- Easy installation: With pre-drilled holes; each solar panel comes with 12AWG cable with MC4 male/female quick connectors
-
Hight Efficiency: 2PCS Polycrystalline solar cell efficiency: 14.35%
- 20A PWM Charge Controller: 8 Battery Type Compatible -Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal, and Calcium. 20 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/360watts, 24V/720watts.

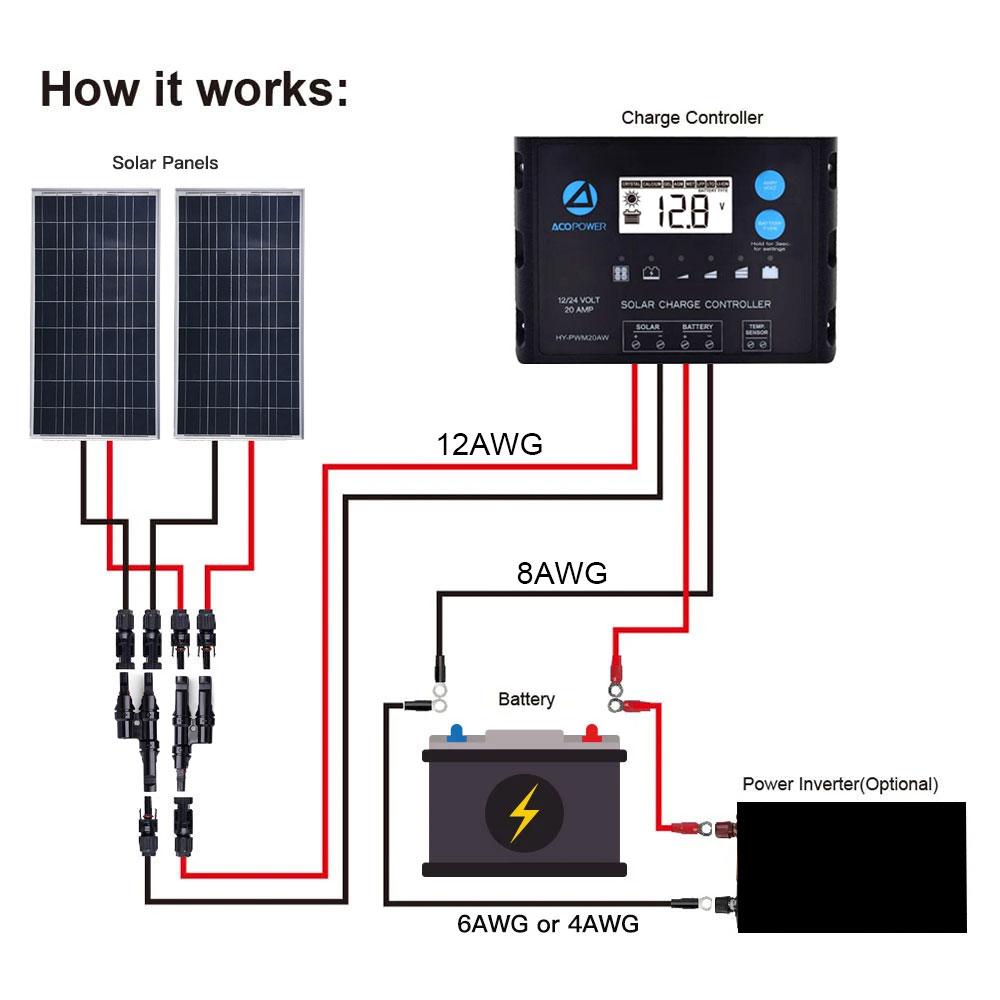

- Green Solar System: Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
- Warranty: 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
- Multiple packages: Order will be delivered in multiple packages
Specification
100W Mono Solar Panel
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc): 6.21A
- Max Power Current(Imp):5.72A
- Wind resistance: 2400pa
- Weight:20.94 lb
- Dimension:40.2*26.4*1.18inches (1020x670x30mm)
- Application Class:Class A

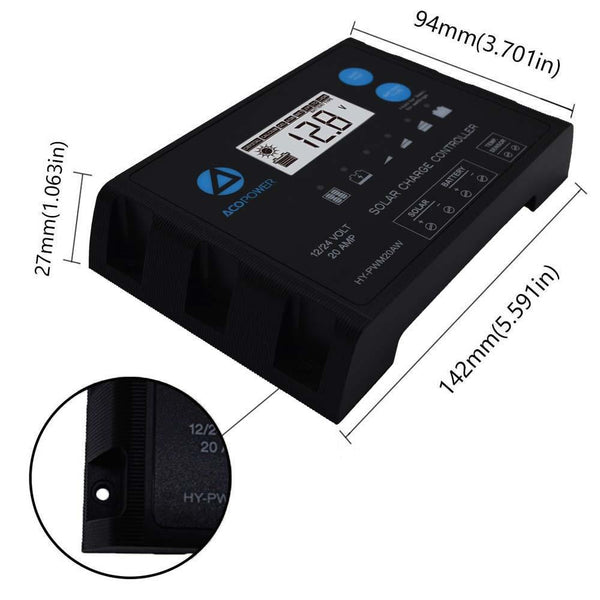

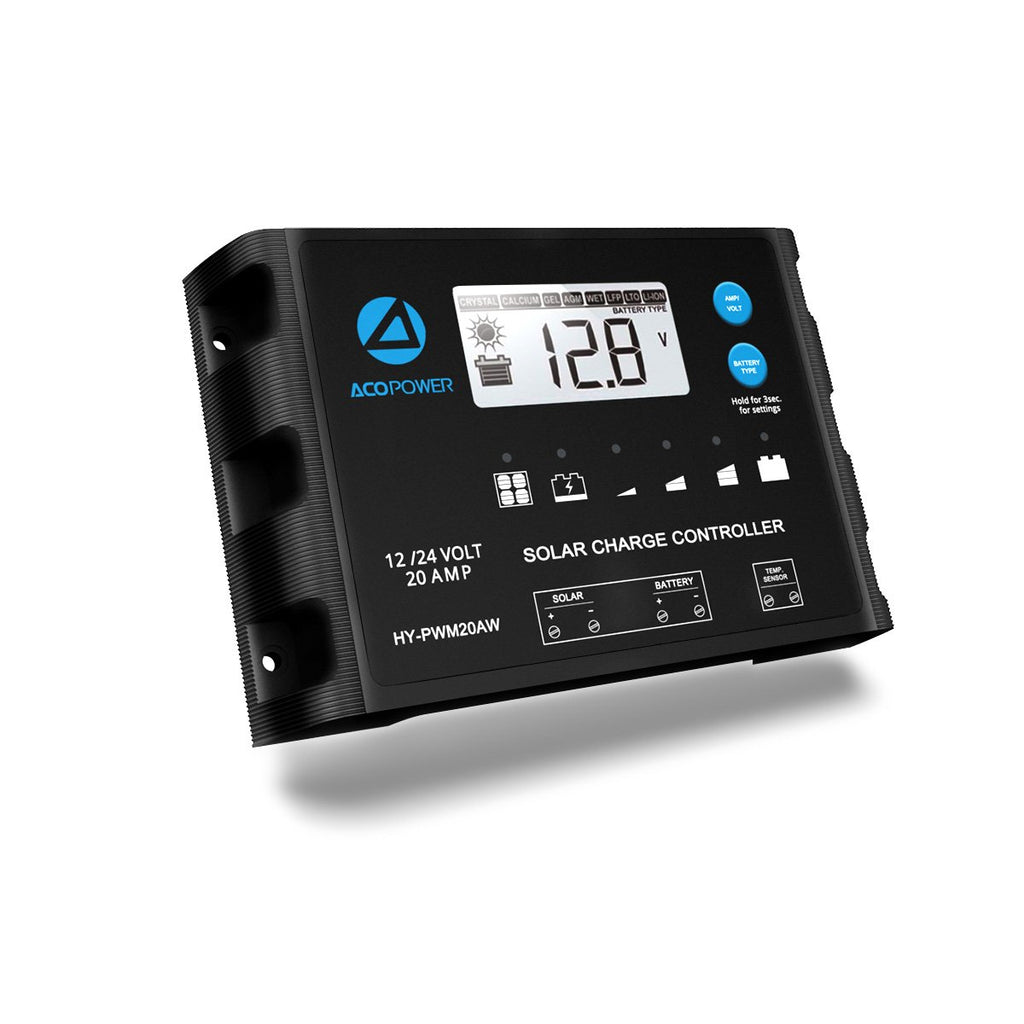

20A PWM Charge Controller
- Nominal Voltage: 12 V/ 24V DC
- Rated Charge Current: 20A
- Max. PV Input Voltage: 50V
- Battery Start Charging Voltage: 3V
- Temperature Compensation Coefficient: -24mV/°C
- Operating Temperature: -40°F to 140°F
- Storage Temperature: -40°F to 185°F
- IP Enclosure Grade: IP65
- Dimensions: 5.59x 3.7x 1.06 inches
Packing list
- 2PCS 100W Polycrystalline Solar Panel
- 1PC 20A PWM Charge Controller
- 2 Sets Mounting Z Bracket

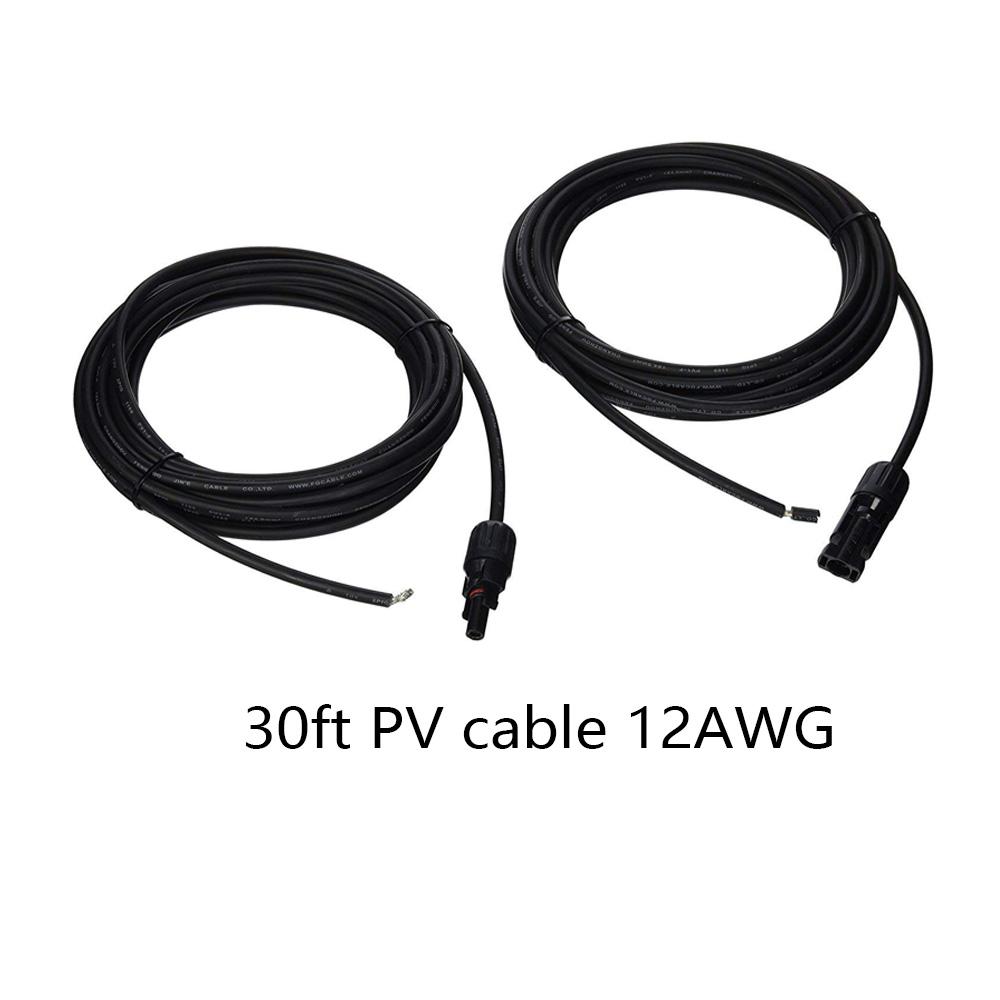

- 1 Pair 30ft 12AWG PV Cable

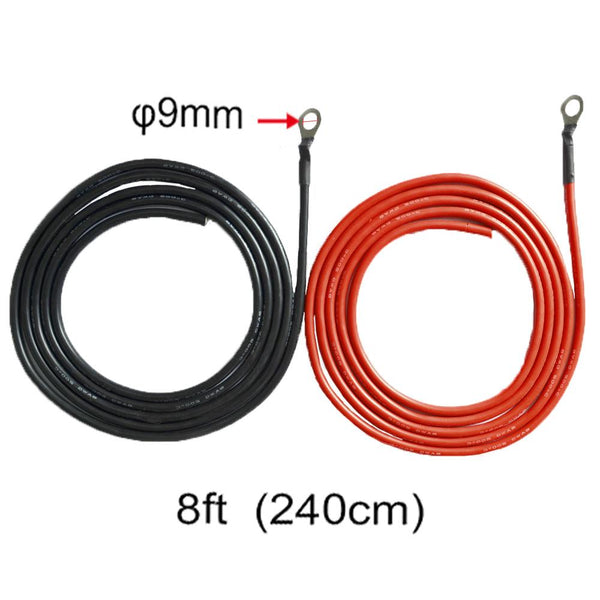

- 1 Pair 8FT 8AWG Tray Cable

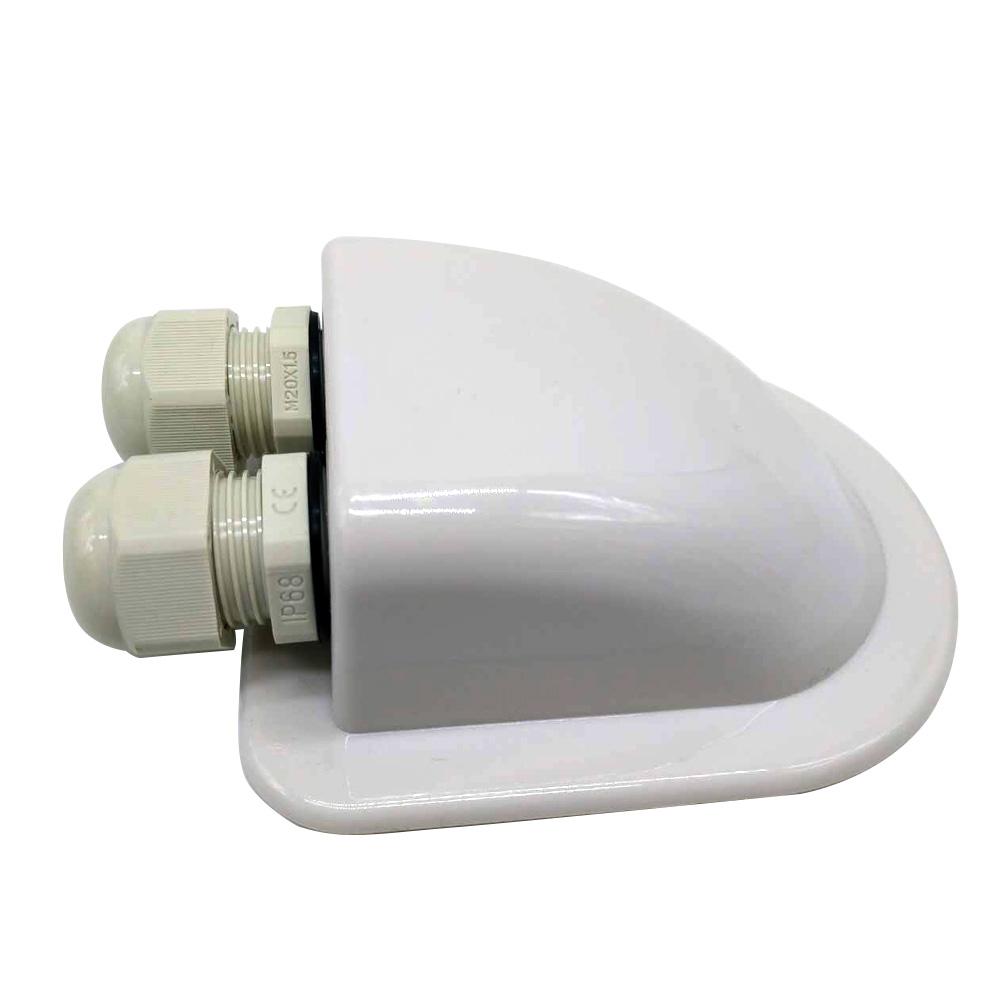

- 1 PC Cable Entry Housing

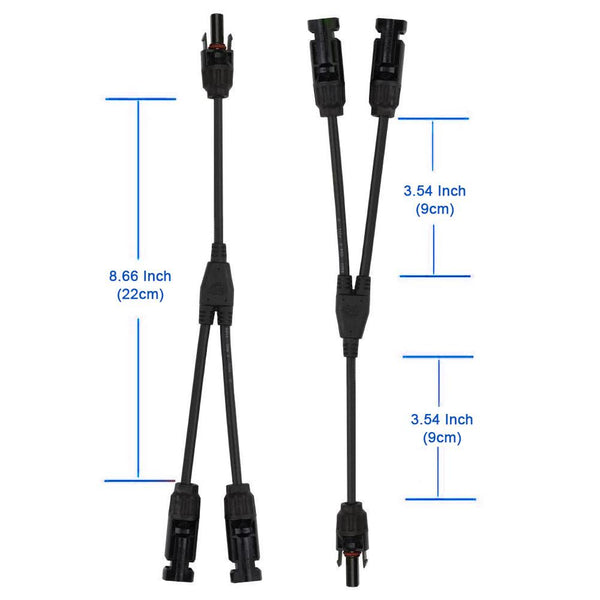

- 1 Pair PV T/Y Connectors
