Fulfilled by our friends at ACOPOWER
- Monocrystalline solar Panel: 8PCS ACOPOWER 100-Watt monocrystalline solar panels can be connected in parallel by branch connectors or connected in series without any connectors;
-
Hight Efficiency: Monocrystalline solar Module efficiency: 19.22%; MPPT charge controller peak efficiency: 99.5%
- MPPT Technology: Solar Charge Controller has user adjustable settings! LCD Screen shows, voltage, solar panel status, battery state of charge, and DC load draw. See Image in photo gallery for all LCD Screen readouts. Compatible with lead acid, AGM, gel, and lithium batteries
- Green Solar System: : Designed for RVs, cabins, homes, boats, back-up and remote power use. The two solar panels can be wired in parallel for 12V battery charging or in series for 24V battery charging
- Common Negative grounding design
- Warranty: 25-year transferable power output warranty on panels and 1-year warranty on rest of the kit components
- Multiple packages: Order will be delivered in multiple packages

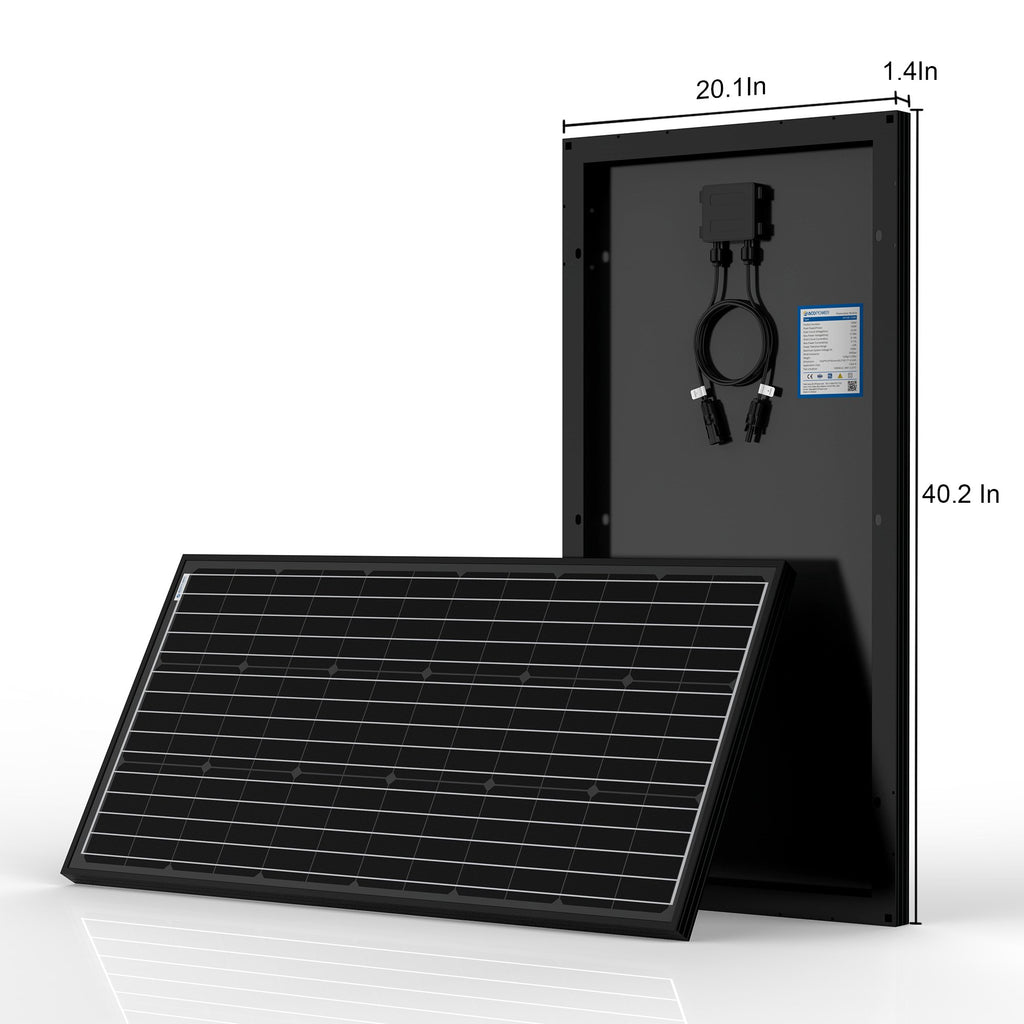

100W Monocrystalline Solar Panel
- Nominal for 12V battery changer
- High-efficiency & high output.
- High transparent low-iron, tempered glass.
- Rugged design to withstand high wind pressure, hail and snow load.
- Aesthetic outlook.
-
Specification
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc): 6.21A
- Max Power Current(Imp):5.72A
- Wind resistance: 2400pa
- Weight: 20.94 lb
- Dimension:40.2*20.1*1.4 inches (1120x510x30mm)
- Application Class:Class A

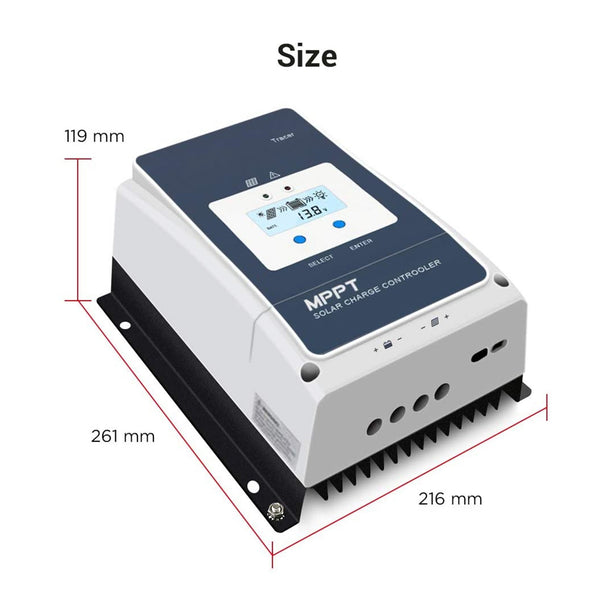

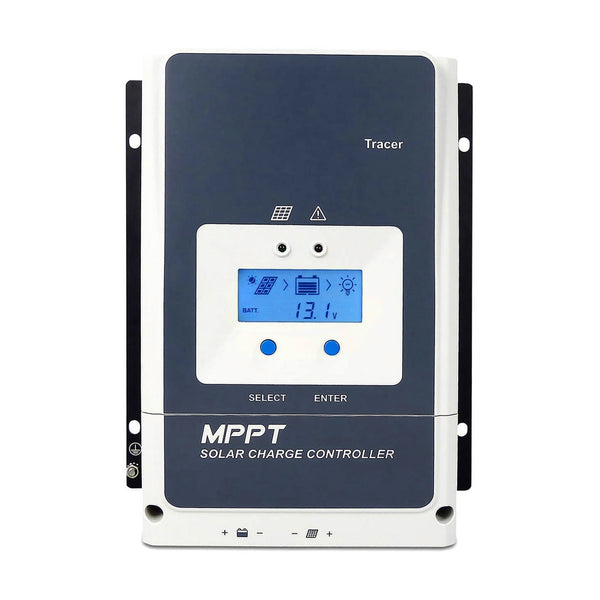

MPPT 60A Charge Controller
- Ultra-fast tracking speed
- Accurately recognizing and tracking of multiple power point
- User programmable for battery types, load control etc.
- Nominal System Voltage: 12/24/36/48VDC or Auto
- Rated charge current :60 Amp
Max. PV open circuit voltage:150V(At 0℃)/138V (At 25℃)
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
MPP voltage range:V(BAT)+2V～108V
Max. PV input power: 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
Package List:
- 8PCS Mono Solar Panel
- 1PC 60A Charge Controller
- 8 Sets Mounting Z Bracket

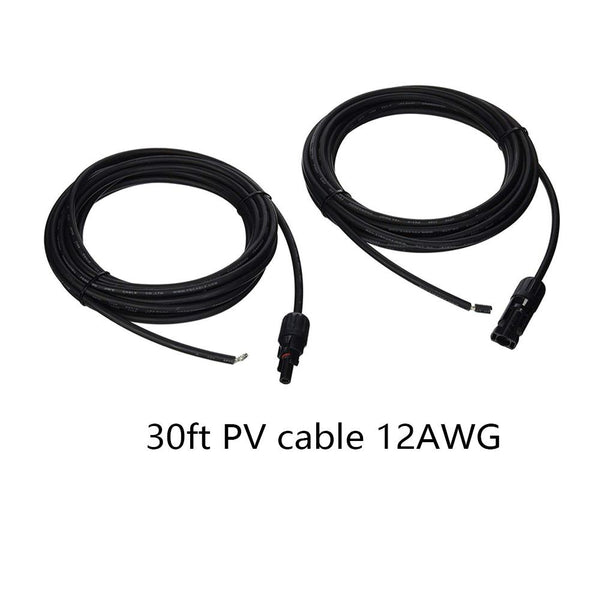

- 1PC 30ft 12AWG PV Cable
- 1PC 8FT 8AWG Tray Cable
- 1PC Cable Entry Housing
- 7 Pairs MC4 Branch Connectors.
